Product Details
Description
Introducing the all new NEUSPEED 6-Piston Big Brake Kit. It is a complete caliper replacement kit that is designed, engineered, machined and built in the USA specifically for Audi and Volkswagen vehicles.
The issue with factory brakes is always the calipers, they are floating with only ONE large piston. This kit replaces the inferior factory calipers with Forged 6-Piston Caliper kit that will improve pedal modulation and stopping performance significantly.
The NEUSPEED BBK Kit retains the use of factory brake rotor/disc for several reasons:
- (a) keeping the ø340mm size minimalize the rotational inertia mass, less when compared to the other aftermarket 355mm kits.
- (b) keeping maintenance overhead low for enthusiasts that go to club racing often.
- Two piece rotors are expensive replacements, $700-1,000/pr, while factory parts are about half of that cost.
Detailed Features:
CNC Machined Forged Aluminum Caliper Body
NEUSPEED Caliper is made from CNC machined Forged 6061-T6 aluminum alloy. The forging process realigns the material grain structure which provides phenomenal strength and weight reduction compared to casted as well as billet calipers.
Forged 6061-T6 Aluminum Pistons
Sharing the same manufacturing process, the Forged 6061-T6 Pistons provide better strength and rigidity compared to the ones made from extruded billet material. The Type III hard anodize shields the pistons against oxidation and provides additional Rockwell hardness to the piston surface.
Internal Seals System
NEUSPEED Calipers features dual internal piston seals. The hydraulic seals are made from a high temperature resistance composite material that are suitable against fatigue from day-to-day usage as well as high-temp competition abuse. The second seal, made from the same material, protects the hydraulic system from outside contaminants such as dust and moisture. This 'Internal Dust Seal' system is far more superior in durability compared to the dated external shield/boot system.
Matched Caliper
NEUSPEED is a specific VW/Audi tuning company and our caliper's piston surface and volume is engineered SPECIFICALLY to pair with VAG factory master cylinders. Unlike other brake manufacturers, we do not pick whatever 6-piston calipers off the shelves and use them across the board on multiple different car makes and model. Mismatched caliper size can cause spongy feel or overly sensitive pedal feel, which then ruins the pedal modulation and not allowing for precise and responsive braking points.
Quick Pad Change System
NEUSPEED caliper is designed by and for enthusiasts. The first item on our engineering design list is to have the ability to quickly and conveniently swap the brake pads. The removable bridge and pins system allows the user to swap pads without having to remove the caliper completely. Simply unbolt the top bridge, undo the guide pins, and slide out the pads, a quick 15-minute process!
Pad Wear Sensor Compatible
NEUSPEED big brake kit utilizes VW/Audi factory sensor kit, while others require the user to splice and bridge the sensor connector to avoid error light on the dash. TRUE OEM replacement.
Aerospace Grade Mounting Bracket
The only Big Brake Kit for VW/Audi models that utilize 7075-T6 billet aluminum bracket, coated with Type III Mil-Spec Hard Anodized. This aerospace grade aluminum alloy gives the same strength and rigidity as solid steel with the faction of the weight. This bracket will give solid feedback to the pedal and not give unlike the typical 6061 material used by other manufacturers.
High-Quality Hardware
All NEUSPEED Brake Kits include stainless steel braided PTFE core brake lines with stainless steel fittings. Caliper bolts are genuine PORSCHE part ensuring the proper strength and dimensions to the application.
Kit Includes:
- 6-Piston Caliper - Left
- 6-Piston Caliper - Right
- 1x Front Set of HAWK 5.0 Pads
- 4x Caliper Bolt
- 2x Caliper Mounting Bracket
- 2x Front Stainless Steel Brake Lines
- 1x Brake Pad Wear Sensor
- Installation and Break-In Instructions
*Note*
- 2015+ : A3,A3 Quattro will require a ø340mm rotor/disc to use this kit
- 2015+ : Non TTS models will require a ø340mm rotor/disc to use this kit
- 2015+ : Golf,GTI models not equipped with the Performance package will require a ø340mm rotor/disc to use this kit
Note - GTI Owners
Own a GTI and unsure if you have Performance Pack brakes? If your GTI brakes look like the photo below you have the Performance Pack brakes. The biggest indicator is the "GTI" on the calipers.
Product Features
- CNC Machined Forged Aluminum Caliper Body
- Forged 6061-T6 Aluminum Pistons
- Internal Seals System
- Matched Caliper
- Quick Pad Change System
- Pad Wear Sensor Compatible
- Aerospace Grade Mounting Bracket
- High Quality Hardware
warranty
As your assurance of the quality of its Products, Automotive Performance Systems, Inc. ("APS"), offers the following limited warranty, applicable in the U.S.A. and Canada only:
Limited Warranty. APS warrants to the original retail purchaser who retains ownership of the vehicle on which the Product was originally installed (the “Consumer”) all of its Neuspeed products. Standard APS products carry a 1 year warranty against manufacturing and/or material defects, unless stated otherwise on individual product listing on this website.
Exclusions from Warranty. This warranty shall not apply to any Product that was not properly installed by a qualified, licensed auto mechanic experienced in the installation of the Product purchased, any Product that was improperly serviced, or any Product that was misused or damaged (if such damage did not result from a Product defect or malfunction). This warranty shall not apply unless the Consumer promptly discontinues use of the Product upon discovery of the defect or premature wearing.
THIS WARRANTY DOES NOT APPLY TO ANY PRODUCT THAT HAS BEEN: (1) MODIFIED, ALTERED OR SUBJECTED TO ABUSE, NEGLIGENCE, ACCIDENT OR COLLISION; (2) IMPROPERLY INSTALLED ON ANY VEHICLE FOR WHICH IT WAS NOT DESIGNED; (3) INSTALLED ON ANY VEHICLE THAT HAS BEEN MODIFIED; (4) INSTALLED ON ANY VEHICLE THAT HAS CARRIED LOADS IN EXCESS OF THE AUTOMOBILE MANUFACTURER’S SUGGESTED WEIGHT LIMITS; (5) INSTALLED ON ANY VEHICLE THAT HAS BEEN USED FOR RALLYING, RACING, RACING-TYPE ACTIVITIES OR OFF-ROAD USE; OR (5) PRESENTED FOR WARRANTY COVERAGE AFTER BEING USED ON A VEHICLE OTHER THAN THE VEHICLE ON WHICH IT WAS ORIGINALLY INSTALLED.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE), THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. ANY IMPLIED WARRANTIES ARE DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY LAW. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL APS, ITS DIVISIONS, EMPLOYEES, AND AFFILIATES BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, LOSS OF USE OF VEHICLE, REVENUE, SALES, OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS, PROPERTY DAMAGE, INCLUDING WITHOUT LIMITATION DAMAGE TO VEHICLE OR COMPONENT PARTS, PERSONAL INJURY, INTERRUPTION OF BUSINESS, OR FOR ANY DIRECT, INDIRECT, INCIDENTAL, ECONOMIC, COVER, AND PUNITIVE DAMAGES, RESULTING FROM POSSESSION, USE OR MALFUNCTION OF THE PRODUCT, EVEN IF APS HAS BEEN ADVISED OF THE POSSIBILITY OF THOSE DAMAGES. SOME STATES DO NOT PERMIT THE EXCLUSION OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TO THE EXTENT THAT A STATE DOES NOT ALLOW AN EXCLUSION OF LIABILITY BUT ALLOWS A LIABILITY TO BE LIMITED, THE LIABILITY OF APS, ITS DIVISIONS, EMPLOYEES AND AFFILIATES SHALL BE LIMITED TO THE PURCHASE PRICE OF THE PRODUCT.
THIS WARRANTY GIVES THE CONSUMER SPECIFIC LEGAL RIGHTS. THE CONSUMER MAY HAVE ADDITIONAL RIGHTS THAT MAY VARY FROM STATE TO STATE.
This warranty information and the specific warranty information included with the Product constitutes the entire agreement between APS and Consumer and exclusively determines the rights and obligations of the parties, any prior course of dealing, custom or usage of trade, or course of performance notwithstanding, and supercedes all prior agreements and understandings, whether oral or written.
Customer Pictures
Customer Reviews
-
Stops good

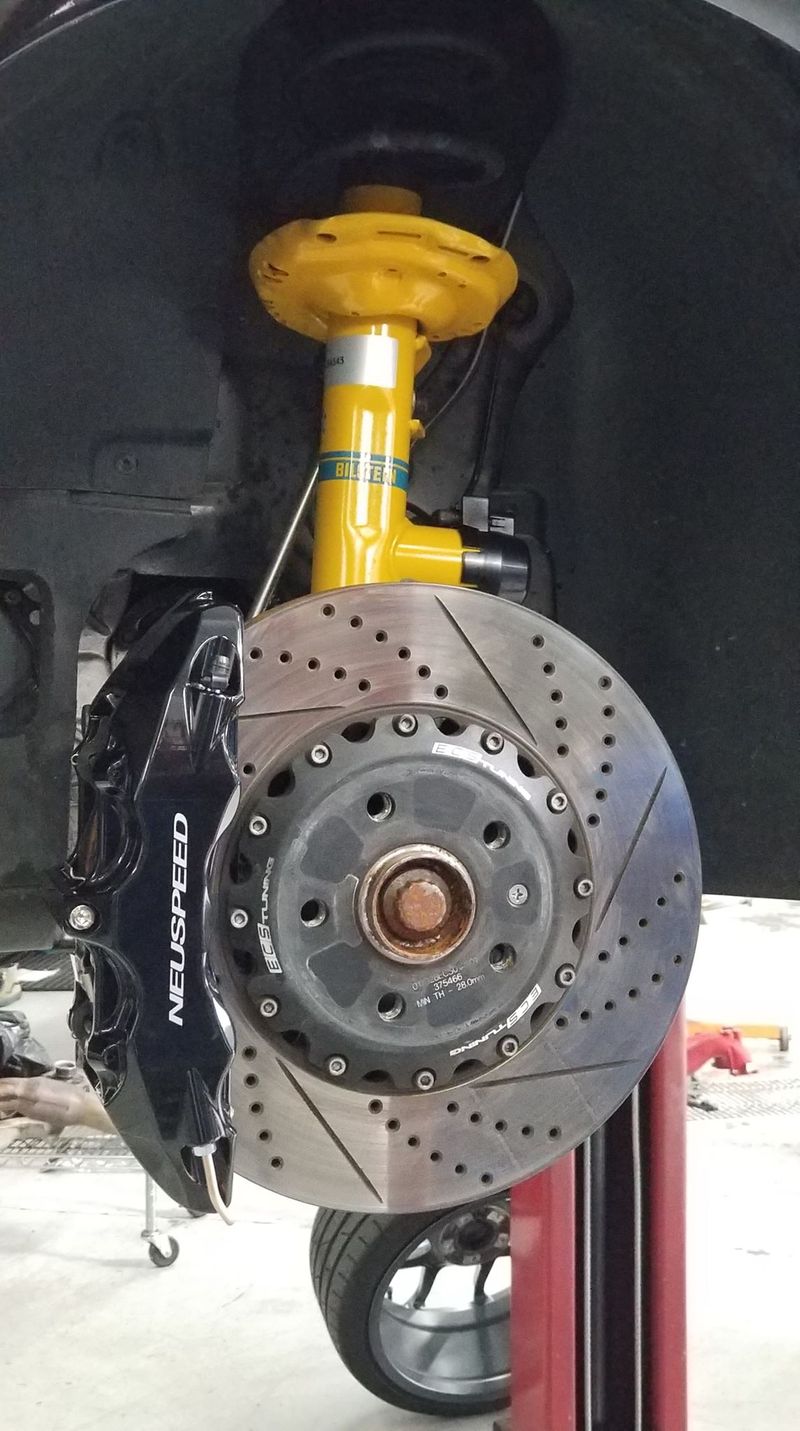

I originally thought upgrading rotors, pads, lines, and fluid would be enough for full send in the canyons out here in Southern California. It wasn't brakes on my Golf R still starting to fade after a few minutes of full send downhill. However, changing to these BBK I did not notice any fade after dozens of hard braking down hill. Braking feel is also approved. These are very reasonably priced. Any other 3 piston BBK are 2400+. The one thats cheap compared to these are the Wilwood BBK but they use a smaller rotor and I didn't want to downsize. These BBK Fitted to my ECS 2 piece rotors just fine and no problems so far after 3 months and 1 track day and multiple runs to the canyons.
