Intake Overview

Feed your Audi MK2 TTS turbo with a supply of cold air with this direct-fit high-flow cold air intake kit. This intake features a generously-sized inlet pipe that connects to the OE mass air flow (MAF) sensor.  The MAF sensor receives high-velocity air fed directly from a 5" velocity stack. Our high-flow velocity stack is neatly housed in a carbon fiber intake lid, which separates the air filter from the hot under-hood air, allowing only cold air to be drawn into the turbo inlet directly from the front of the car.

Notes

• This intake is not CARB exempt and is not legal for street use in California & other states adopting CARB standards. Please check your local laws before purchasing.

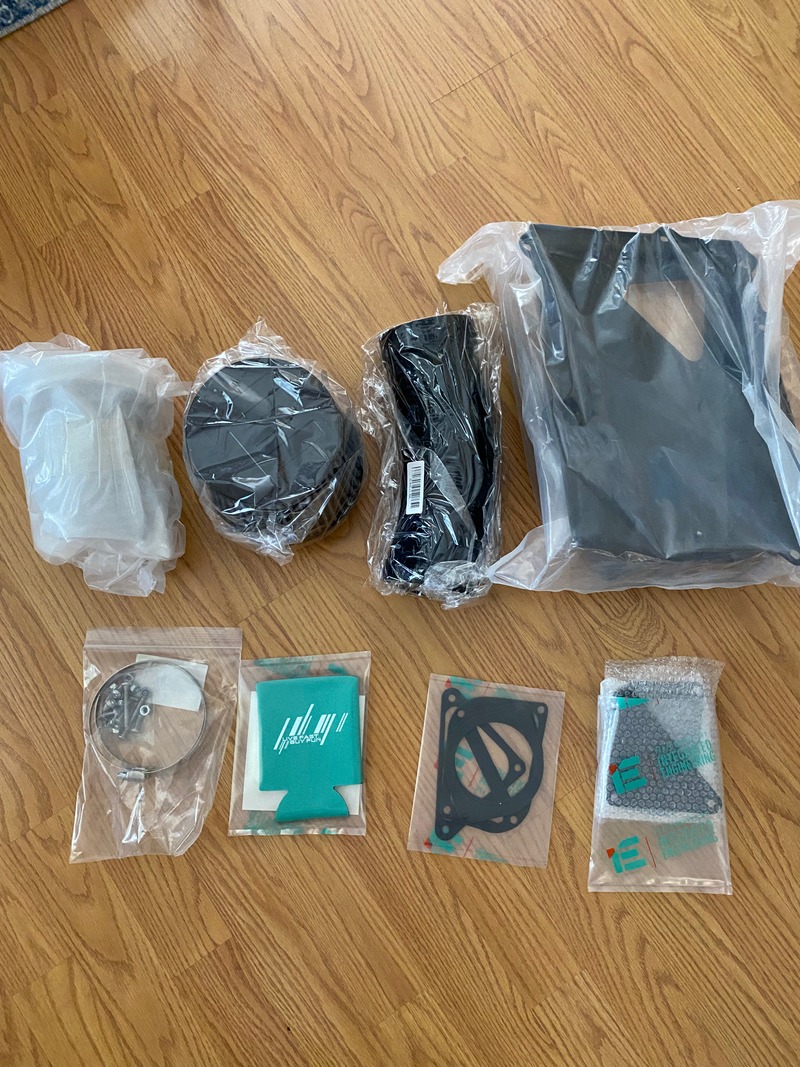

TTS Intake Kit Video Unboxing

Technical Details

Direct Fit Intake

This air intake kit provides all the necessary piping and couplers to plumb the intake system from the turbo to the MAF and then to the carbon intake lid.  The carbon intake lid installs using the OE hardware for easy maintenance and reliable mounting with no rubbing or interference with other factory parts.

High-Flow Bellmouth

The air intake utilizes a high-flow carbon fiber bellmouth behind the massive cone air filter to deliver as much air as possible. This bellmouth design increases the air velocity to the MAF and pulls cold air equally from all directions into the filter. This bellmouth is securely fastened to the carbon lid as a clean pass-through providing a solid mount for the air filter and OE MAF. Furthermore, the bellmouth opening allows for a filter with a very large surface area that can support any horsepower goal. The same filter and bellmouth design have been tested to support over 500HP on our twin-scroll big turbo kits with huge success.

Optional Sound Doors

This intake kit features a unique feature allowing gasket sealed "sound doors" to be installed or removed giving the owner control of the intake noise.  Removing one or both of the intake doors will either increase or reduce the amount of throttle and turbo noise.  This feature delivers all the benefits of both a closed box and open air filter intake designs. Removing or installing the sound doors does not affect the performance increase of this intake.

Carbon Fiber Design

The IE carbon fiber intake lid is designed to create a thermal barrier blocking all of the radiant heat from the engine bay. Only cold air from the front of the vehicle is drawn into the filter from the opening in the radiator support keeping air intake temperatures as cold as possible. This allows factory placement of the intake to be used without placing the filter lower in the vehicle where it can be subjected to engine harming road debris or fluid.

FAQ's

When is the best time to upgrade to the IE High-Flow Intake?

The IE Audi MK2 TTSI High-Flow Cold Air Intake is designed as an upgrade for cars at any point, from factory and up.  This is a very popular modification for Stage 1 tunes, and is required for most Stage 2 tunes and up.

What all is included with the IE High-Flow Intake?

The intake kit includes the direct-fit carbon fiber intake lid, carbon fiber bellmouth, air filter, inlet silicone, billet MAF adapter, IE logo plate, front & rear sound doors, and all install hardware including bolts, gaskets, and hose clamps.

Is there any modification required to install the IE Carbon Fiber Intake?

The IE intake kit is a direct replacement for the applications listed above. There is a small amount of trimming required to remove a brace from the OE air box. However, the vehicle can be put back to stock at any time.

What kind of power increase will I see with the IE High-Flow Intake?

Power increase is dependent on the turbo setup and the boost levels that you are running. The larger the turbo setup and the higher the boost pressure, the larger the gains will be with the IE intake kit.

How much horsepower will the IE High-Flow Intake support?

The bellmouth, air filter, and carbon fiber intake lid included in this kit has been designed after our IE450T twin-scroll big turbo kit, and has been tested to support over 500hp successfully with room to grow. The air inlet silicone in this kit is designed to flow perfectly with the factory MAF housing and turbocharger.

What turbochargers can I use with the IE High-Flow Intake?

This kit is designed to be a direct bolt-on kit for the factory installed Borg Warner K04 on all MK2/8J TTS 2.0T TFSI EA113 engines.  For larger aftermarket upgraded turbos you will need to modify this intake kit to fit.
