034Motorsport Billet Aluminum Dogbone Mount Insert (A3, TT, Golf, GTI, Jetta, Rabbit, Golf R, Passat, CC)

LOWEST PRICE GUARANTEED
$48.00
48.00
SKU: 108942
MPN: 034-509-1021

Product Details

Description

034Motorsport's Billet Aluminum Dogbone Mount Insert for 2009+ MkV/MkVI Volkswagen Golf/Jetta/GTI/GLI & 8J/8P Audi TT/A3 is designed to fill the large void in the factory dogbone mount, and limit transmission movement without sacrificing ride quality or introducing excessive additional noise, vibration, or harshness into the cabin. By filling the void in the factory mount, this insert eliminates the associated slop to ensure that you experience crisper shifts and a smoother driving experience.

Please Note: We highly recommend purchasing our Billet Aluminum Dogbone Mount Arm along with this insert, as the factory cast arm on 2.0T models can fail when vehicles are launched aggressively or shifted hard. This arm is known to fail even on completely stock vehicles.

Have you increased the power output of your vehicle beyond the factory figures and are in need of a performance mount solution to effectively deliver that power to the ground? Are you tired of excess engine/transmission movement hindering shift quality and performance? The factory dogbone mount is one of the weakest links in the drivetrain, and is engineered with voids that allow for movement, isolating the driver from the road.

This precision-machined billet aluminum insert is designed to fill the large voids in the factory dogbone mount, and limit transmission and engine movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. By filling the void in the factory mount, this insert eliminates the associated slop and ensures that you're experiencing crisper shifts and a more direct, connected driving experience.

Engineered to work in unison with the factory rubber mount, this insert was designed using CAD software and thoroughly tested and refined to provide noticeable slop reduction without introducing excessive noise or vibration into the cabin, which is common with lesser designs. Unlike polyurethane insert options on the market, this billet aluminum part will not pack and wear over time, and guarantees long-lasting performance.

This mount was thoroughly tested by 034Motorsport and independent Audi/Volkswagen enthusiasts before release. Installation is very simple, can be performed in minutes, and is completely reversible.

Features:
  • T6-6061 Billet Aluminum Construction
  • CNC-Machined In-House
  • Clear Anodized Finish for Durability
  • Engineered to Fill Void In Factory Transmission Mount
  • Drastically Reduces Transmission Movement During Shifting & Deceleration
  • Improves Shifting Feel, Resulting in Crisper Shifts
  • Virtually No Additional NVH Transfer Inside Cabin
  • Easy, Straightforward Installation Takes Minutes!
What's Included:
  • 034Motorsport Billet Aluminum Dogbone Mount Insert

Product Features

  • T6-6061 Billet Aluminum Construction
  • CNC-Machined In-House
  • Clear Anodized Finish for Durability
  • Engineered to Fill Void In Factory Transmission Mount
  • Drastically Reduces Transmission Movement During Shifting & Deceleration
  • Improves Shifting Feel, Resulting in Crisper Shifts
  • Virtually No Additional NVH Transfer Inside Cabin
  • Easy, Straightforward Installation Takes Minutes!

installation

The installation of your 034Motorsport 2009+ MkV/MkVI Volkswagen Golf/Jetta/GTI/GLI & 8J/8P Audi TT/A3 Dogbone Mount Insert is a relatively simple process that will take approximately 30-45 minutes to complete. You can access our detailed installation guide by clicking the icon on the left.


Downloads

MkV/MkVI Volkswagen Golf/Jetta/GTI/GLI & 8J/8P Audi TT/A3 Dogbone Mount Insert Install Guide

warranty

Fitment Guide

Does this fit my vehicle?

Fitment Guide
Start Year End Year Make Model Submodel Cyl Lit Fuel FuelDel ASP EngDesg Notes
2009 2013 AUDI A3
A3 QUATTRO
ALL ALL ALL ALL ALL ALL ALL
2009 2009 AUDI TT BASE ALL ALL ALL ALL ALL ALL
2009 2015 AUDI TT QUATTRO BASE
PREMIUM PLUS
PRESTIGE
RS
S
ALL ALL ALL ALL ALL ALL
2009 2017 VOLKSWAGEN CC EXECUTIVE
LUX
LUX LIMITED
LUX PLUS
LUXURY
R-LINE
R-LINE EXECUTIVE
SPORT
SPORT PLUS
TREND
L4 2.0 GAS FI T ALL
2010 2014 VOLKSWAGEN GOLF BASE
TDI
ALL ALL ALL ALL ALL ALL
2012 2013 VOLKSWAGEN GOLF R ALL ALL ALL ALL ALL ALL
2009 2014 VOLKSWAGEN GTI ALL ALL ALL ALL ALL ALL ALL
2009 2010 VOLKSWAGEN JETTA GLI
WOLFSBURG EDITION
L4 2.0 GAS FI T ALL
2009 2010 VOLKSWAGEN JETTA TDI
TDI CUP EDITION
L4 2.0 DIESEL FI T ALL
2009 2010 VOLKSWAGEN JETTA S
SE
SEL
L5 2.5 GAS FI NA ALL
2011 2015 VOLKSWAGEN JETTA BASE
S
L4 2.0 GAS FI NA ALL
2011 2015 VOLKSWAGEN JETTA TDI
TDI PREMIUM
TDI S
TDI SE
TDI SEL
L4 2.0 DIESEL FI T ALL
2011 2013 VOLKSWAGEN JETTA SE
SEL
L5 2.5 GAS FI NA ALL
2012 2017 VOLKSWAGEN JETTA GLI
GLI SE
GLI SEL
L4 2.0 GAS FI T ALL
2014 2017 VOLKSWAGEN JETTA SE
SEL
SEL PREMIUM
SPORT
L4 1.8 GAS FI T ALL
2016 2017 VOLKSWAGEN JETTA S
SE
L4 1.4 GAS FI T ALL
2009 2014 VOLKSWAGEN JETTA SPORTWAGEN ALL ALL ALL ALL ALL ALL ALL
2009 2010 VOLKSWAGEN PASSAT KOMFORT L4 2.0 GAS FI T ALL
2009 2009 VOLKSWAGEN RABBIT ALL ALL ALL ALL ALL ALL ALL
2009 2017 VOLKSWAGEN TIGUAN ALL ALL ALL ALL ALL ALL ALL

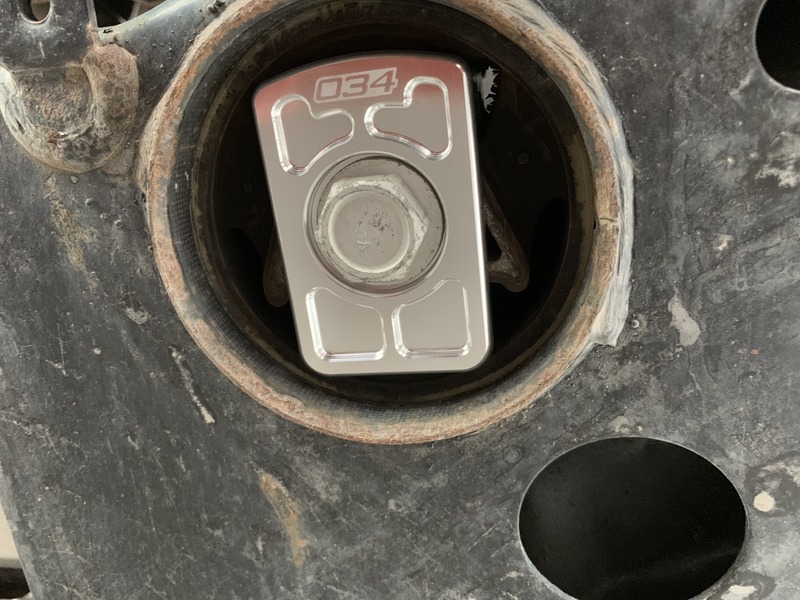

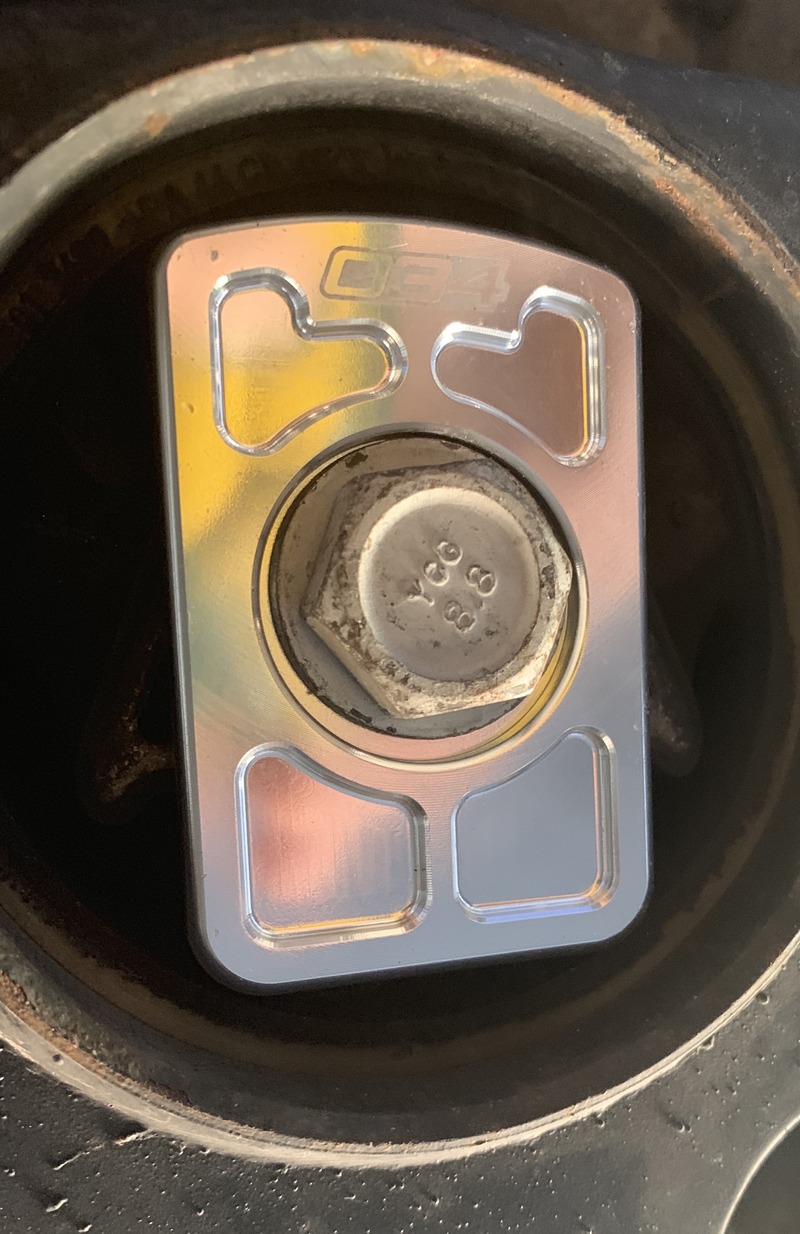

Customer Pictures

Customer Reviews

5 / 5 Avg. Rating
Write a Review
  • I think my wheel hop issues are cured.

    I had been running a red spulen or Neuspeed insert in dogbone mount area. I experienced wheel hop under SEVERE launching.
    I heard about this 034 Motorsport insert. At first was a bit apprehensive. Didn't look like it had THAT much area, (compared to rubber
    insert I was currently running).
    After doing a lot more research, found out 034 made an INSERT that you can purchase ALONG WITH this mount. (I run a 2013 VW beetle turbo, 6 speed manual).
    Same basic drivetrain as my sons 2014 GTI, (cept he has a DSG auto).
    Anyway, I purchased both the 034 Motorsport insert, AND also upper pieces that go along with this lower mount.
    Easy install. I also modded the beforementioned Neuspeed/spulen mount, I cut it down (rear part), and inserted that along with new pieces.
    Blue loctited, torqued down, and took car for a test beat. Even tho it's colder'n snot (however cold snot gets in 10 degree in Wisconsin). I got into boost
    a couple of times on GOOD/dry roads. Tires lit up instantly, with absolutely NO sign of wheel hop.
    There IS a hair more vibration/NVH, due to this install, but as loud as my exhaust is, it's nothing I'd worry about. (wife hates my car already).
    So, bottom line, I highly recommend this mod, if you're running a decent amount of power, and like to GET on the throttle, without fear of wheel hop.
    Can't wait to slap the stickies on her, take her to the drags this summer, and knock off those 60's.

    Steve Olson
  • I got this after tuning my car. It’s the best $45 I’ve spent on any performance mod. Car shifts and feels a lot better. I’ve noticed no extra vibrations (as i was fully expecting to). Install was a bit harder than expected as my engine shifted a little bit once taking the bolt out. I would definitely recommend this product as well as this site. It was shipped very fast to me and they even sent an air freshener and sticker!! Don’t delay but this part today!!

    Steven
  • Anxious

    All the reviews are dead on. Was anxious to try it out. I mean it’s an affordable investment. Can’t go wrong with it. Was skeptical wether to go with CTS turbo or 034. But you get what you pay for for right?
    Im happy with the sharper feel, smoother shifts and oddly more control to the ground. Waiting on the upper dog bone mount insert as well. Check it man.

    Arturo Mendez
  • Night and day difference

    Shifts are so much smoother, you can tell the car just wants to throw the power to the ground with each shift. Wakes up the throttle a bit too to get better response. Feels great, highly recommend

    Michael Spencer
  • Small part...BIG noticeable difference

    The small details can go a long way. I installed this insert in about 15 mins, took for a drive and immediately could feel a better launch reaction, quicker throttle response, powerful shifts and no hopping. I actually don't mind the vibration upon initial roll! Great product and the DSG in my CC couldn't be happier. Thanks to M.E. and 034MotorSport!

    Sheridan T
  • Great part

    After installing, it was like I had put a completely different high end transmission in my car. Cleaner shifts, no wheel hop, and much smoother driving overall

    Jayson
  • For such a small price you get some awesome performance, smoother shifting, more power to the wheels and no wheel hop. I was skeptical because of what I heard about the vibration inside the car but there is hardly any added vibration when idling (a little when reversing but barely noticeable!)

    Super easy install , great price and great product.

    Highly recommend

    Kyle Aragon
