The 034Motorsport R420 Hybrid Turbocharger Upgrade Kit for the Volkswagen MkVI Golf R was designed for the track day enthusiast who desires an improved usable powerband without sacrificing reliability. Providing significant increases in horsepower and torque past 4,200 RPM, the R420 Turbo Kit shines on the track where the factory turbocharger can’t keep up. With an OEM+ hybrid turbocharger upgrade and 034Motorsport’s proprietary performance software, R420 is the elegant, reliable solution for breathtaking performance on the street or track at an excellent price.

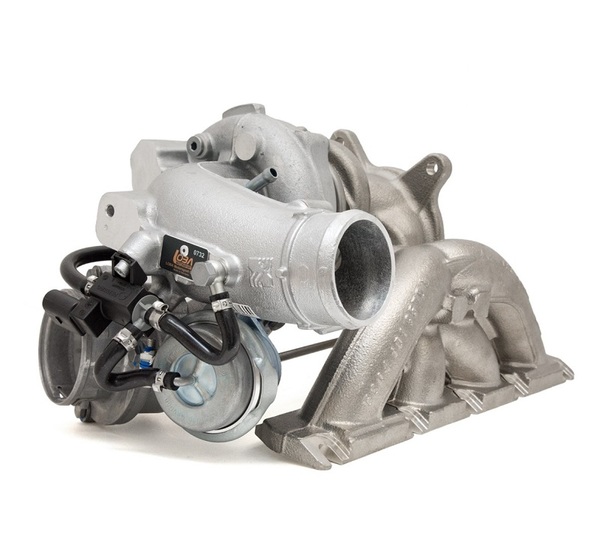

At the center of the 034Motorsport, R420 Turbo Kit is the LOBA LO420-EA113 drop-in hybrid turbocharger upgrade. Made in Germany and based on the factory Borg Warner unit, this turbocharger features a state-of-the-art billet compressor wheel to allow for higher flow. The backplate, compressor housing, turbine housing, and exhaust manifold have all been CNC-machined for optimal flow and increased performance. In addition, the LO420-EA113 turbocharger features an upgraded thrust bearing and is precision-balanced to ensure reliability.

034Motorsport spent significant time developing and verifying our proprietary software to ensure that R420 delivers consistent, reliable power under grueling track conditions. Optimizing the factory ECU's boost, fueling, and timing maps, the R420 Tuning Package brings out the potential of the LO420-EA113 Turbocharger. Peak boost ranges from 22-24 PSI (octane dependent) and tapers to 20 PSI by the new 7,200 RPM redline to keep the turbo running at its optimum efficiency. This conservative, track-oriented boost mapping provides rock-solid performance lap after lap and an advanced boost control strategy that allows for increased precision beyond factory limits. Going beyond power improvements, 034Motorsport’s calibrator improved the throttle mapping, increased idle stability, and enabled left-foot braking. The result is a tune that drives as smoothly as a factory calibration, with power delivery that is consistent and manageable on the street and track alike.

The R420 Hybrid Turbocharger Upgrade Kit installs as a drop-in replacement for the factory parts without requiring extensive modifications to other components. Every R420 Tuning Package includes a Dynamic+ End User Flashing Kit that allows the end user to access and flash tuning files for 91, 93, 100, and 104 octane files to the ECU.

PEAK HORSEPOWER & TORQUE:

• Stock: 256 Horsepower / 243 Foot-Pounds of Torque
• R420 91 Octane: 360 Horsepower / 344 Foot-Pounds of Torque
• R420 100 Octane: 407 Horsepower / 383 Foot-Pounds of Torque

PEAK HORSEPOWER & TORQUE GAINS UNDER CURVE:

• 91 Octane: 104 HP @ 6,600 RPM / 101 TQ @ 3,900 RPM
• 104 Octane: 151 HP @ 6,800 RPM / 140 TQ @ 3,900 RPM

REQUIRED SUPPORTING MODIFICATIONS:

• High-Pressure Fuel Pump (HPFP) Upgrade
• Performance Downpipe Upgrade
• Performance Intercooler Upgrade
• Performance Air Intake

TUNE INSTALLATION:

• Installation: Flashed directly to your vehicle's ECU through the OBD-2 port using the included Dynamic+ End User Flashing Kit.

EMISSIONS DISCLAIMER

• This product is sold for racing use as well as use on vehicles not registered for highway use.
• By purchasing this product, you understand that it is sold for racing use and used on vehicles not registered for on-highway use and that it is not legal for use on the highway or street vehicles.
